With a max contact rating of 50W and a max switching voltage of 220V AC, this float switch is perfect for a variety of applications.
The switch may actuate a pump, an indicator, an alarm, or other device.
Description:

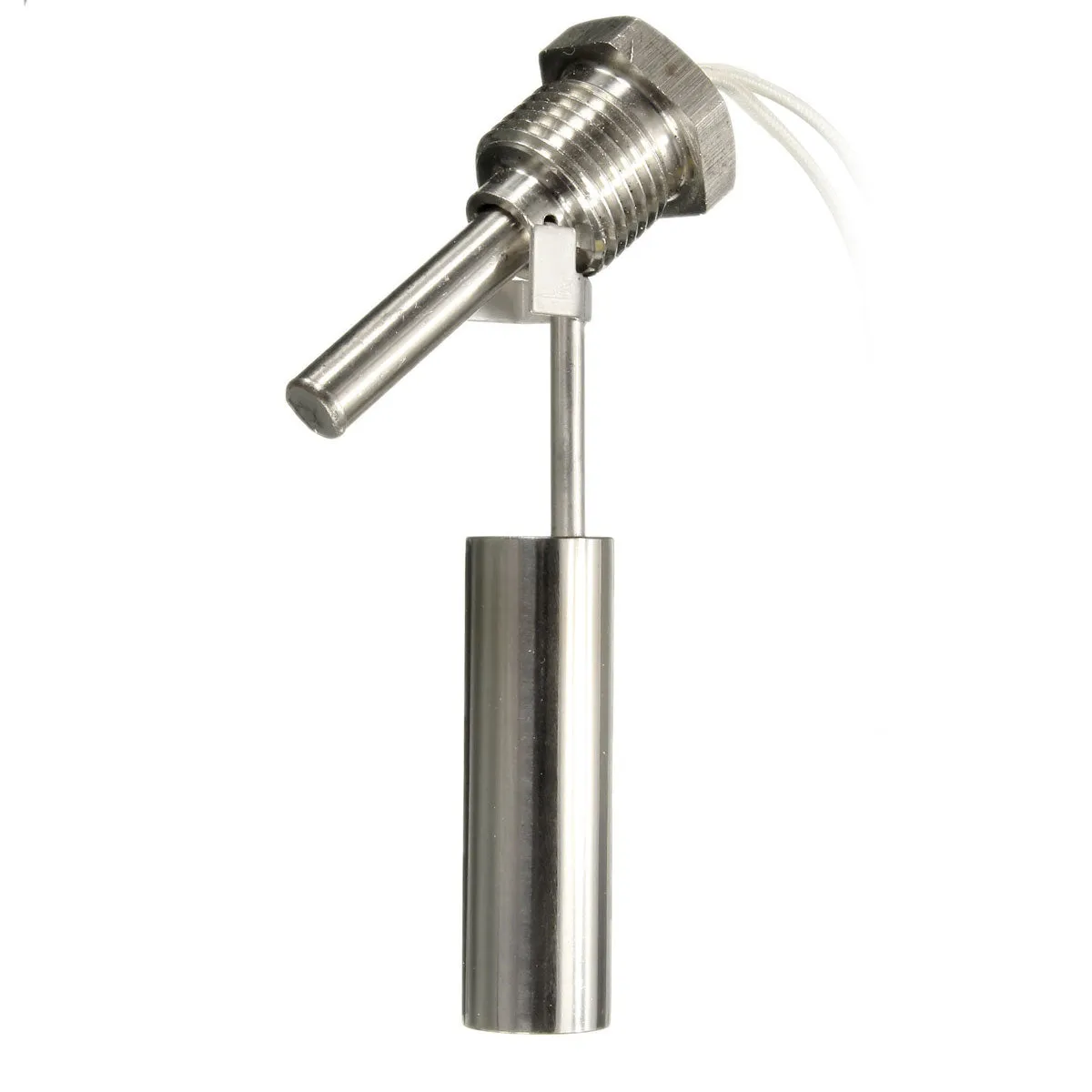

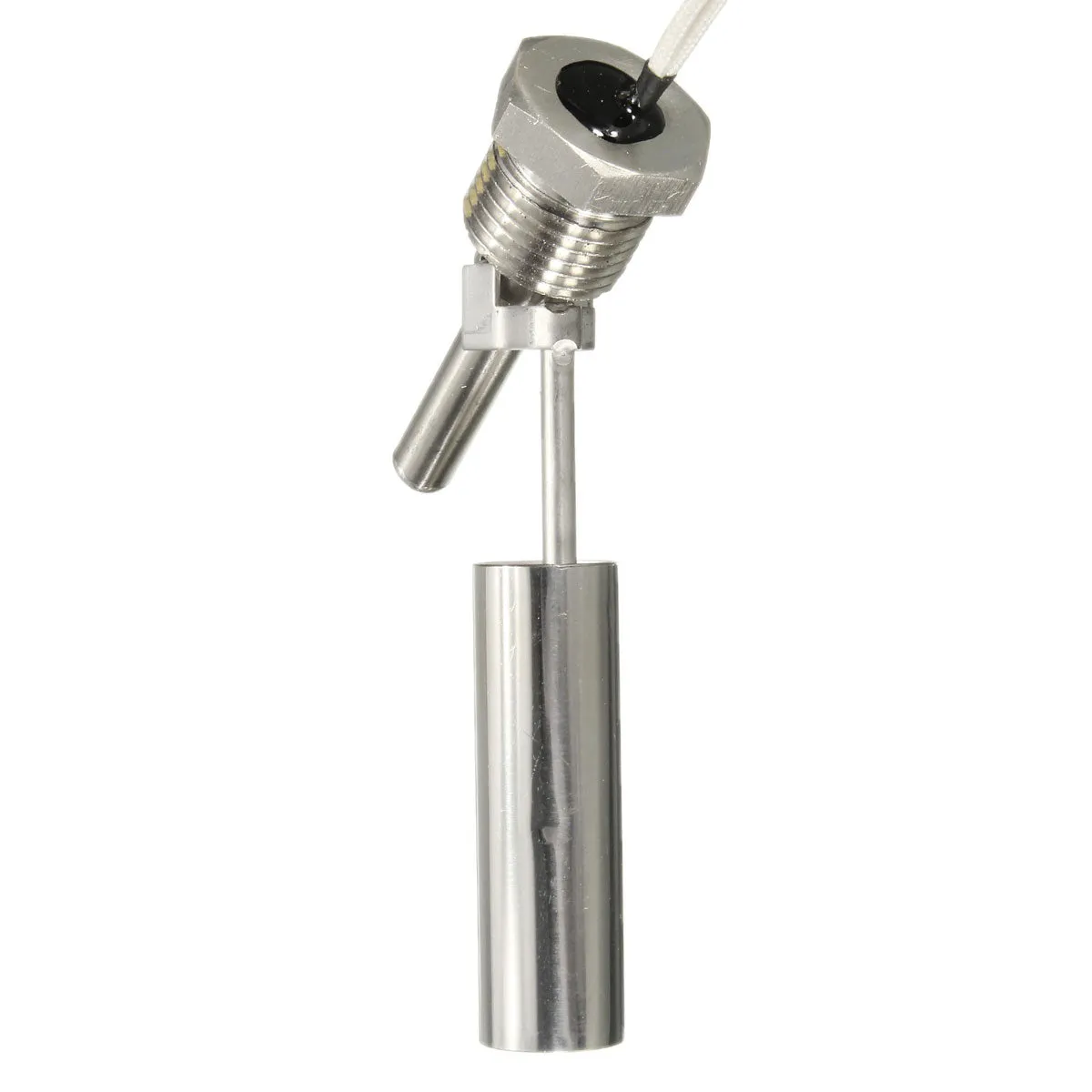

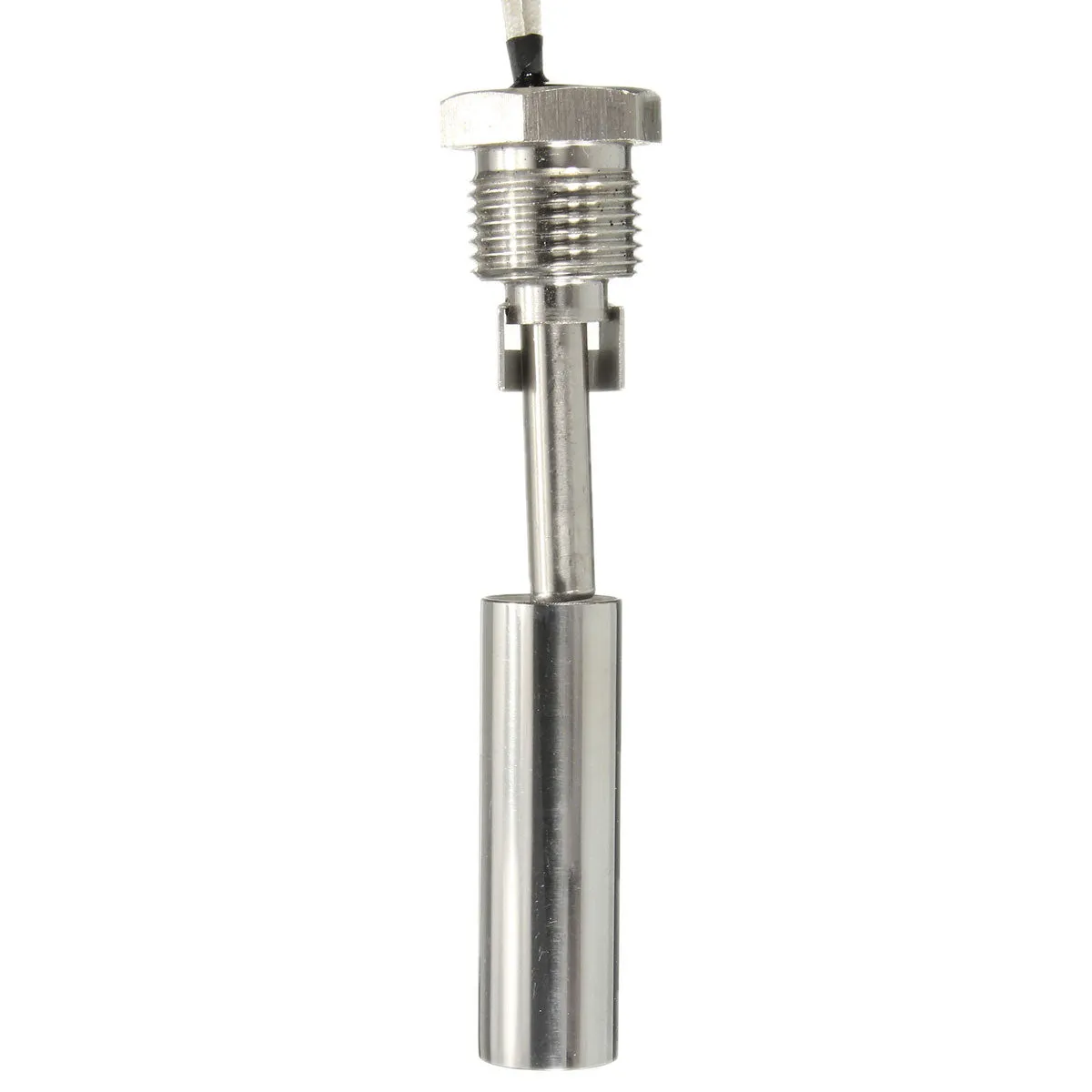

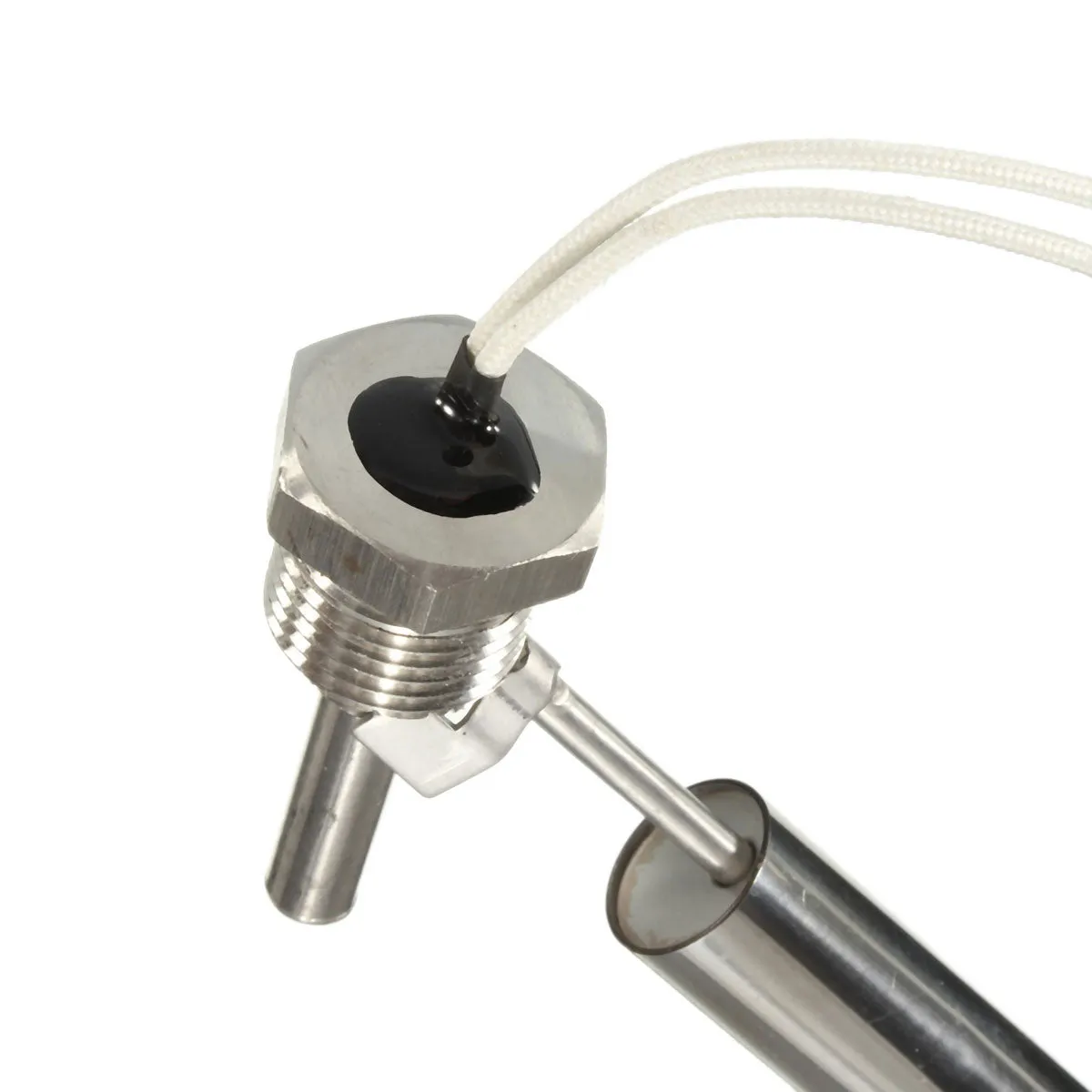

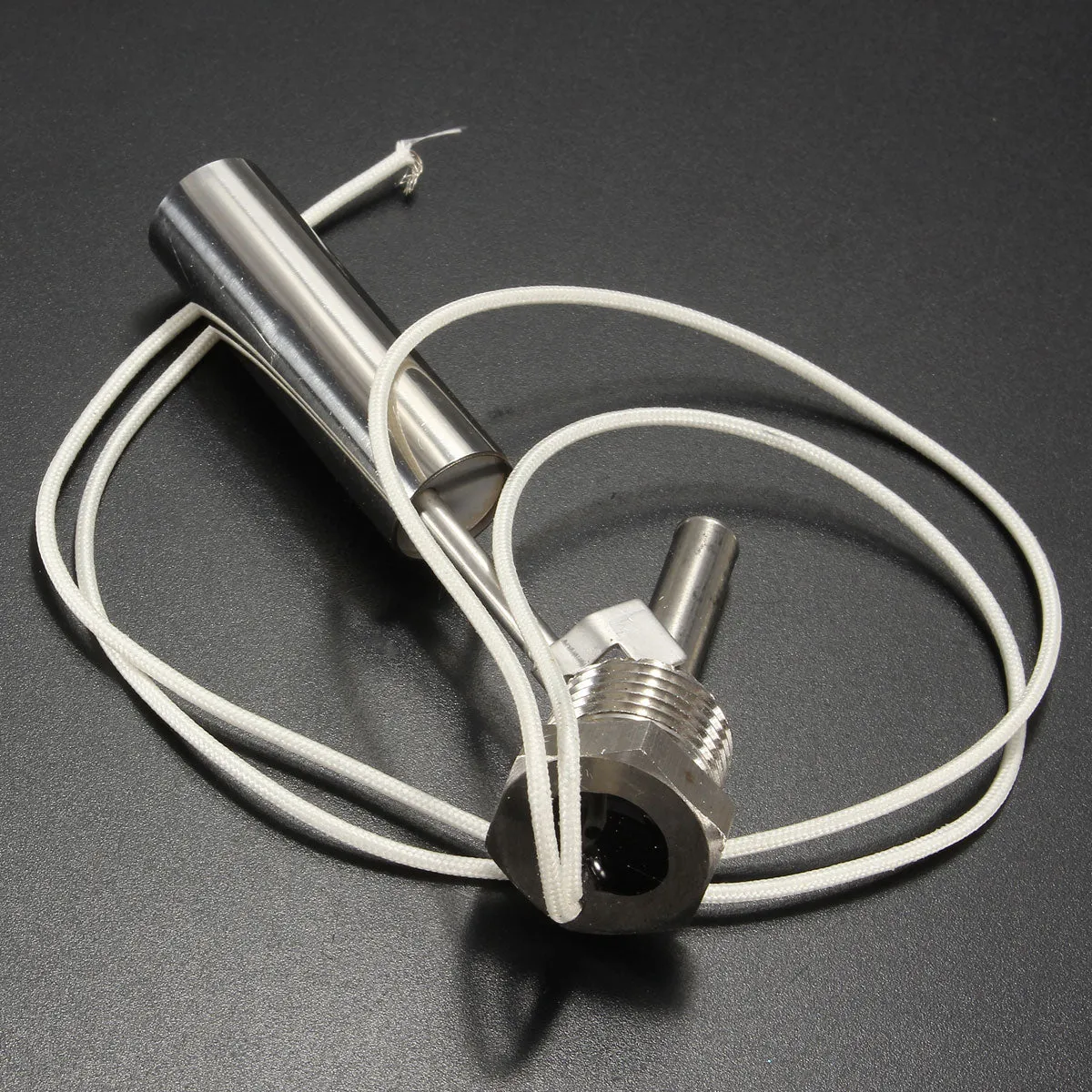

115mm 50W 220V Stainless Steel Liquid Water Level Float Switch

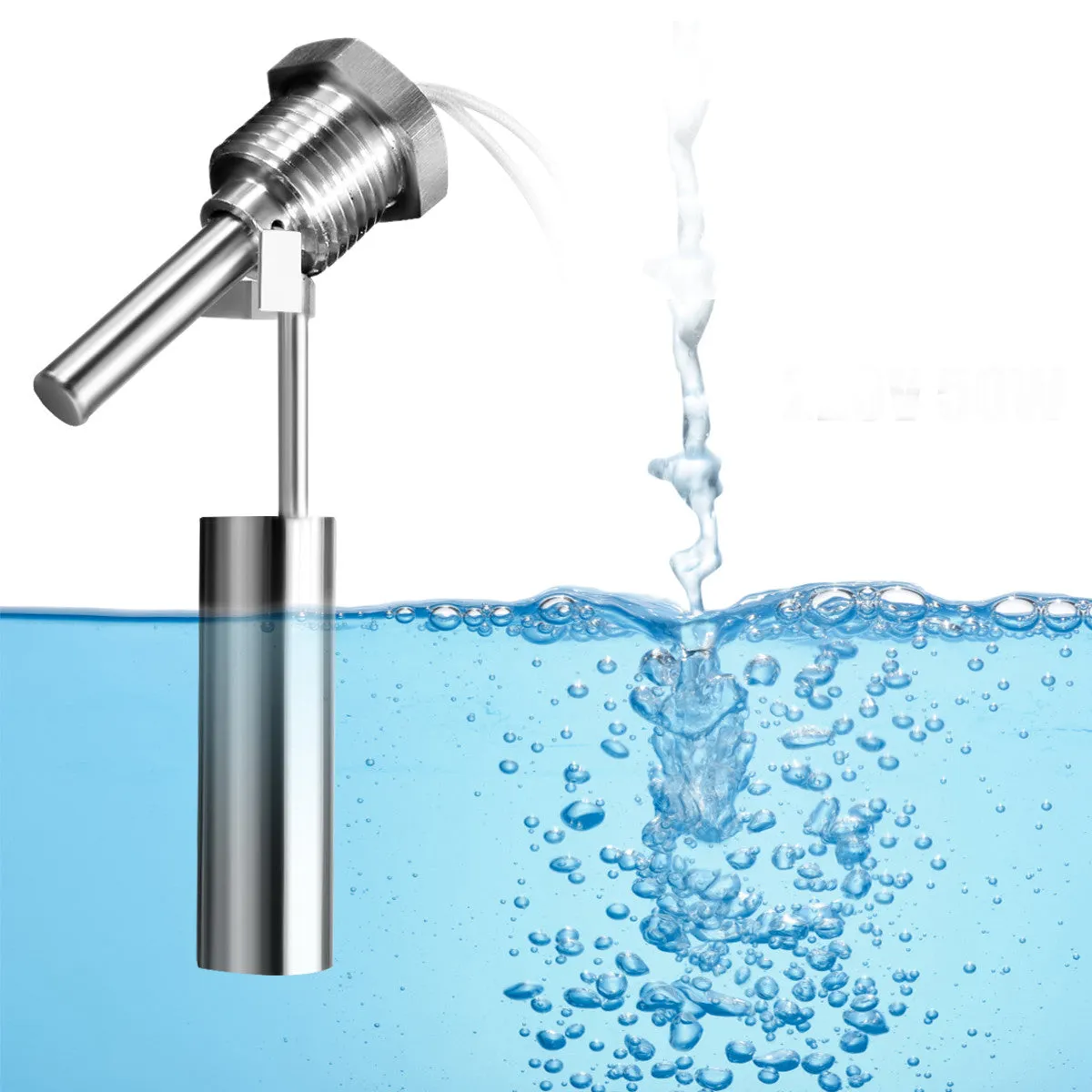

A float switch is a device used to sense the level of liquid within a tank.
The switch may actuate a pump, an indicator, an alarm, or other device.
Use it with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach, reef aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation line, in relays, or what ever your project may be.
Specification:
| Color |
Silver |
| Material |
Stainless Steel SUS |
| Max Contact Rating |
50W |
| Max switching voltage |
220V AC |
| Max switching current |
1.5A |
| Max breakdown voltage |
300V AC |
| Max carry current |
3.0A |
| Max contact resistance |
100mΩ |
| Max temperature |
-30℃ - 125℃ |
| Thread Dia(Approx) |
21mm, 1/2”PT |
| Thread Length |
15mm/0.59' |
| Switch Total Length |
115mm/4.5' |
| Cable Length |
38cm/15' 40cm/15.7' |
Package Included:
1 x Floating Switch
